(Ref. No.1) Straightening CTL Multi-blanking Line mm 1500 x 0,5-3,0

Main specifications:
STRAIGHTENING AND CUT-TO-LENGTH MULTI-BLANKING LINE BOLLINA, mm 1500 x 0.50 to 3.0 for non sensitive materials
Ref. code C2100
Year of manufacturing: 2008, very good condition, available for sale "as new".

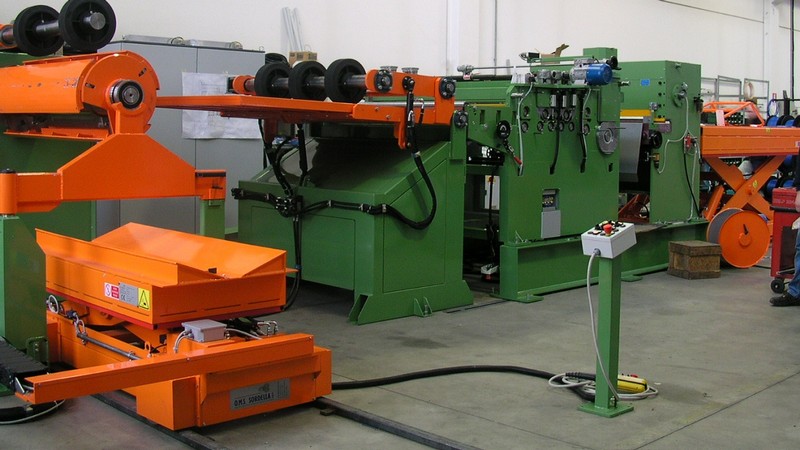

Composition and main features:

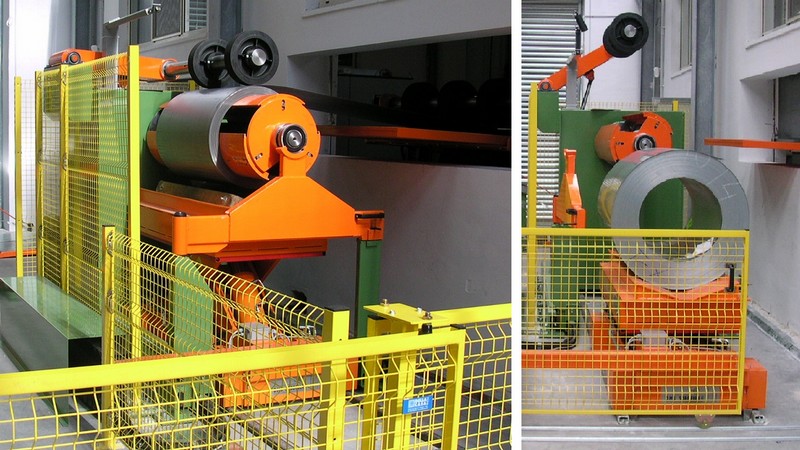

  • Motorized decoiler 10 ton capacity, hydraulic expansion, hydraulic coil older arm, movable base, decoiling with brake control.
  • Hydraulic coil loading saddle, installation above the floor level.
  • Hydraulic open coil device

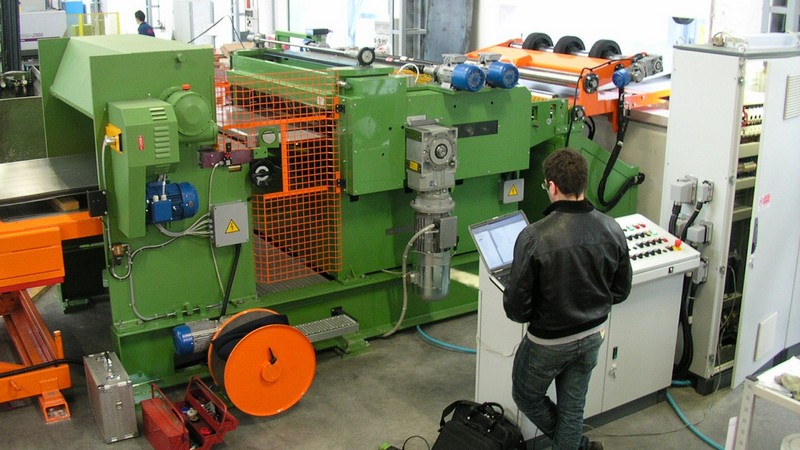

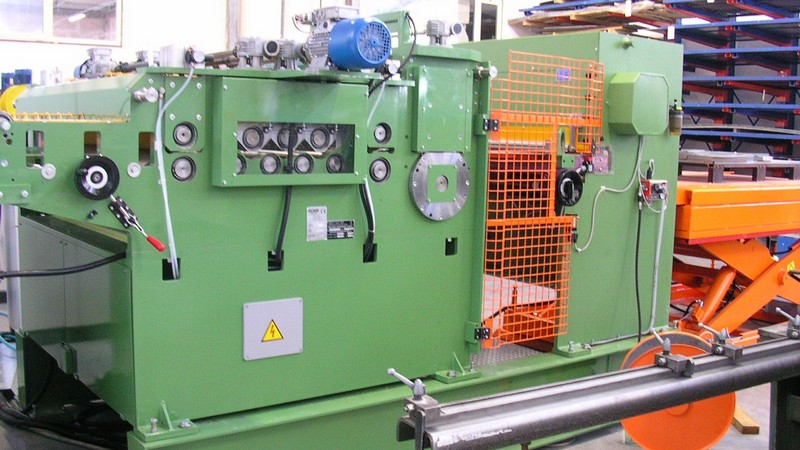

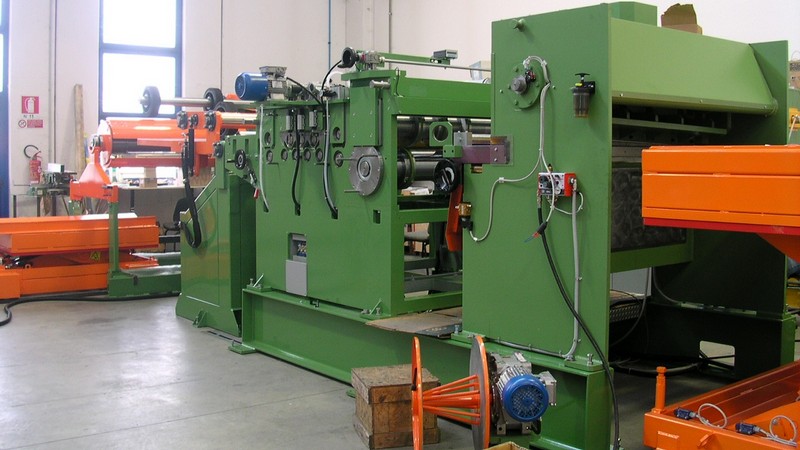

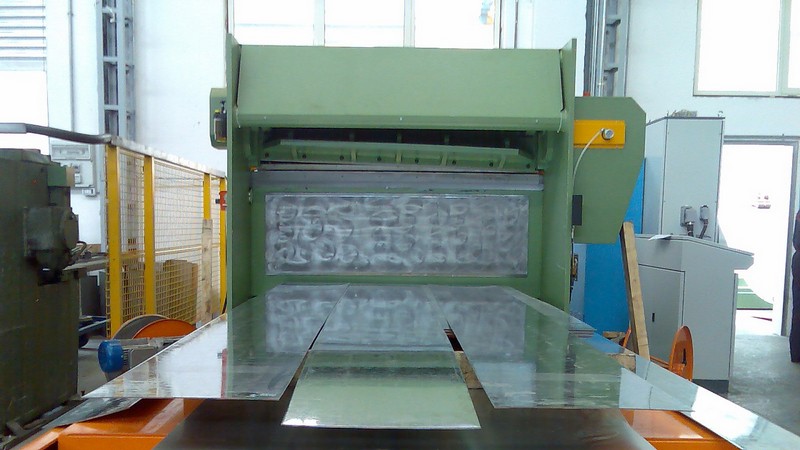

  • Compact 7 rolls Straightening, Feeder, Slitting and Crosswise cut (CTL with side trimming and/or multi-blanking)
  • Start-stop cut system, speed up to 40 m/min, accuracy +/- 0,2 mm
  • Electronic display device for slitting knives adjustment

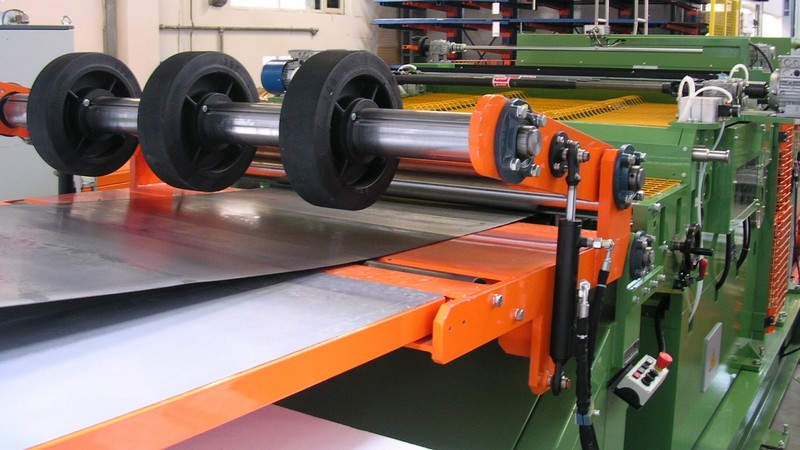

  • 2 Motorized recoilers for edge scraps

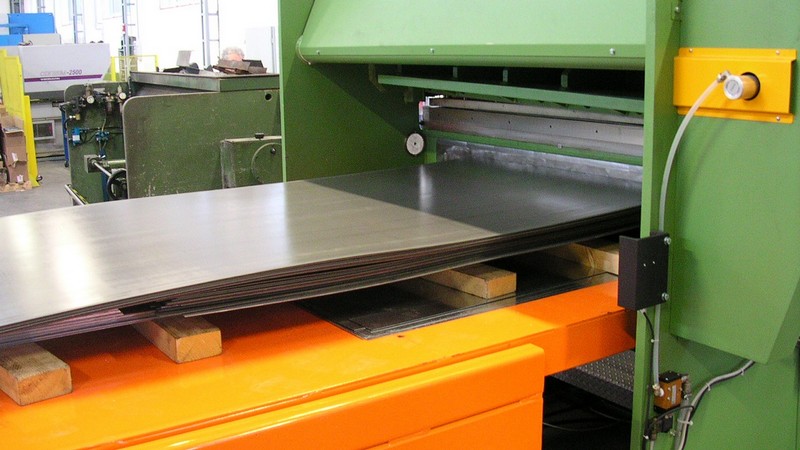

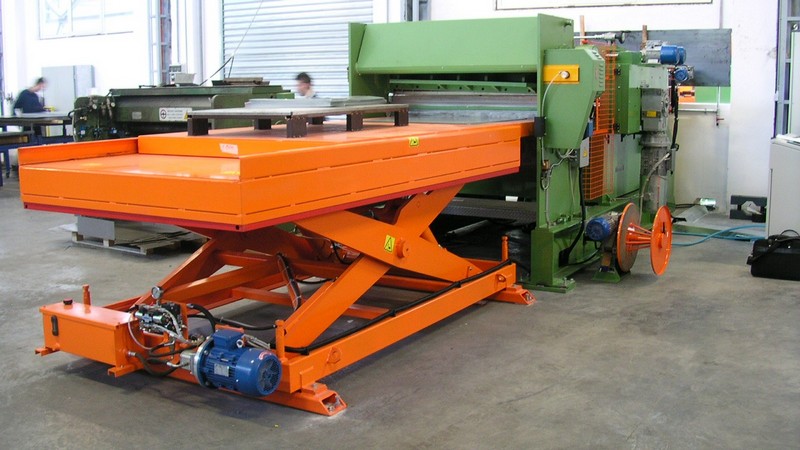

  • Hydraulic scissor lifting collecting platform, 3 tons capacity, max sheet's length 3 mt.
  • Complete pneumatical and hydraulic installation for whole line.
  • Modern electrical / electronic system with Vipa PLC for the complete line.
  • Complete safety system in accordance with EC norms (perimeter fences and photocells).
  • Use and maintenance manuals, diagrams etc. in Italian language.

Line in excellent condition, under revamping and check in Bollina's facility, available for sale.
Line will be ready for delivery, after revamping and check, starting from March 2020.
Any requests for customizations will be evaluated in detail.
For information contact our Sales Offices (tel. +39 051 6630804) or send a request to Sale Dept.
