(Ref. No.2) Combined CTL and Coiling Line mm 1500 x 0,4-1,5 for roofing and cladding market

Main specifications:

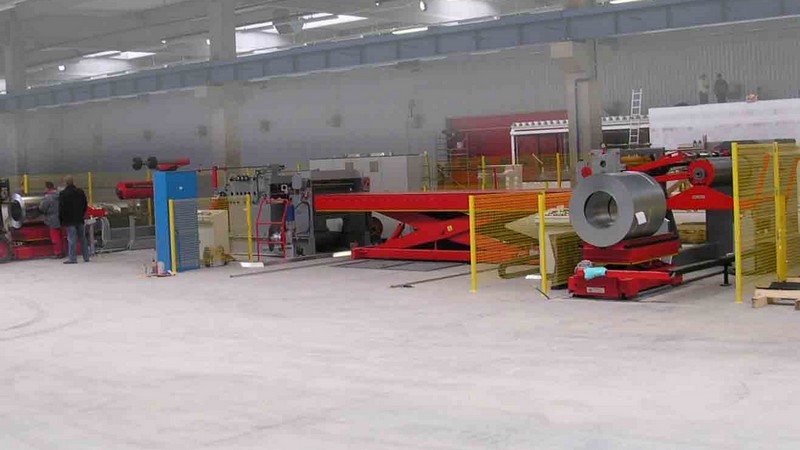

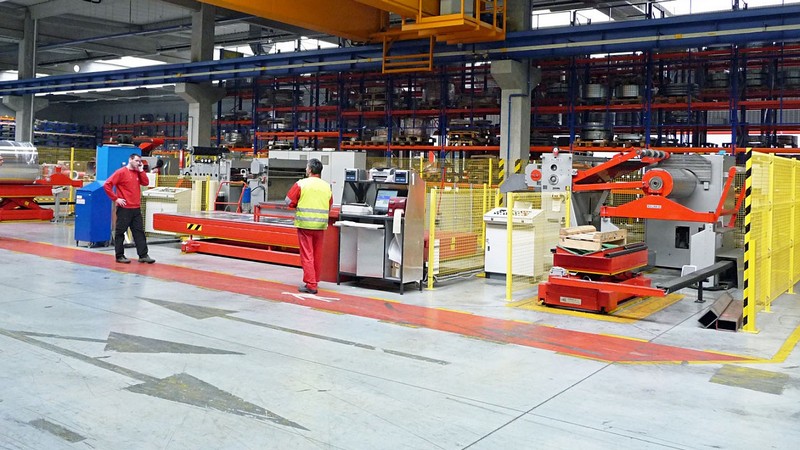

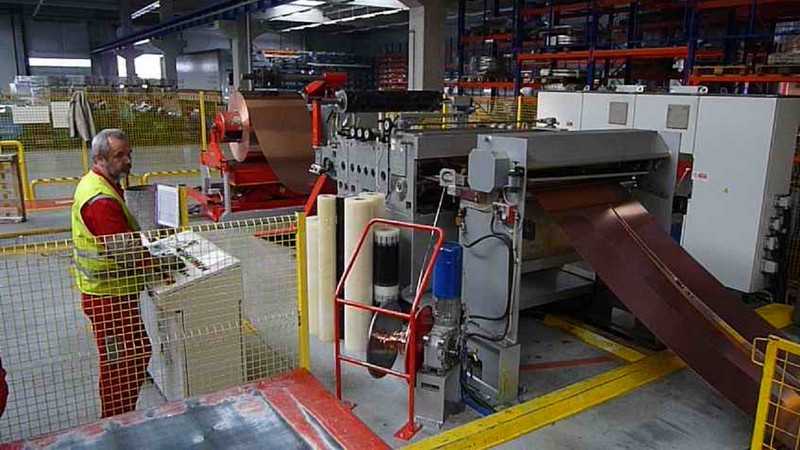

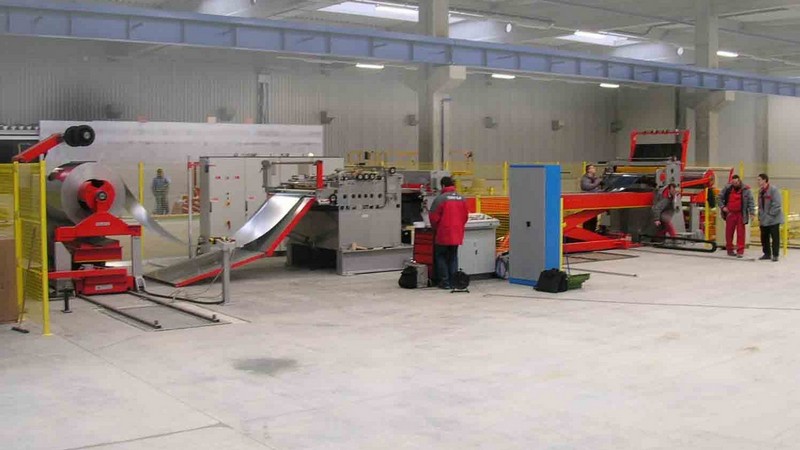

BOLLINA COMBINED CTL, SLITTING AND COILING LINE mm 1500 x 0,4-1,5 for roofing and cladding market
Suitable for professional uses on roofing and cladding market
Year of manufacturing: 2007, very good condition, available for sale "as new".

Composition and main features:

  • Working width up to mm 1500, coil weight up to 10 tons, speed 40 m/min CTL mode, 50 m/min recoiling mode
  • Thickness range 0,4-1,5 for roofing and cladding materials (color coated, copper, titan zinc, galvanized etc)

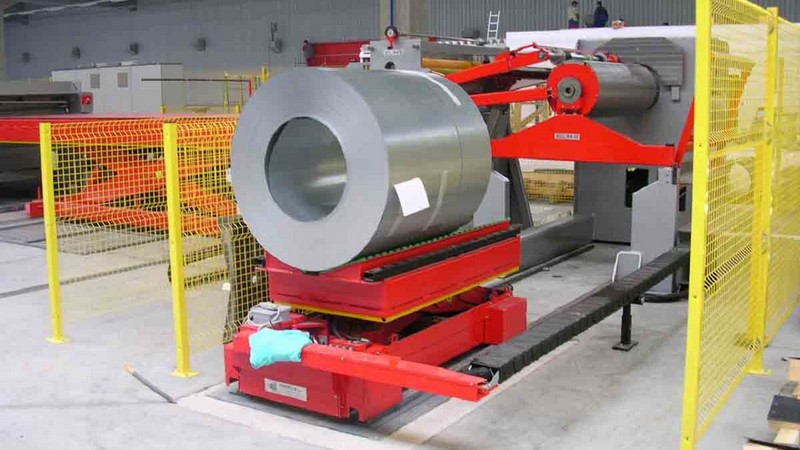

  • Motorized decoiler 10 tons capacity, hydraulic expansion, hydraulic coil holder arm, AC inverter drive with loop control
  • Hydraulic coil loading saddle for uncoiler (installation over the floor)
  • Pneumatic introduction table for straightener
  • Multiple PVC dispensed

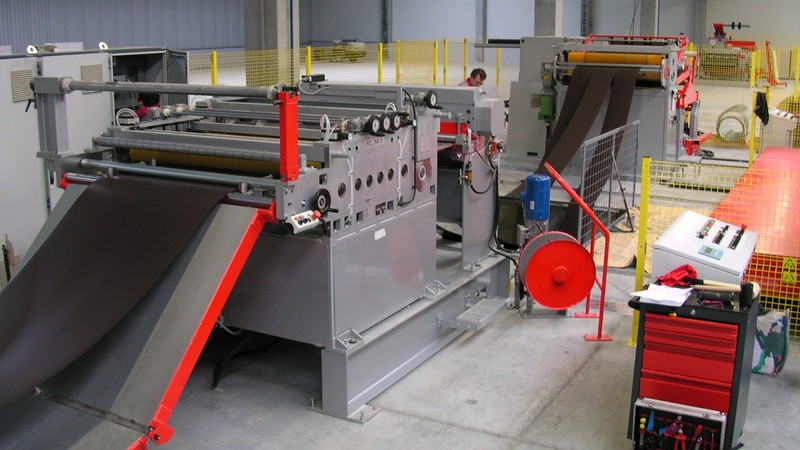

  • Start-stop straightening, slitting and cut to length unit mod. LTB Easy7-150-C composed by
    • Entrance guide unit with 2 pinch-rolls
    • 7 rolls straightener with manual adjustment up-down
    • 2 feeding rolls

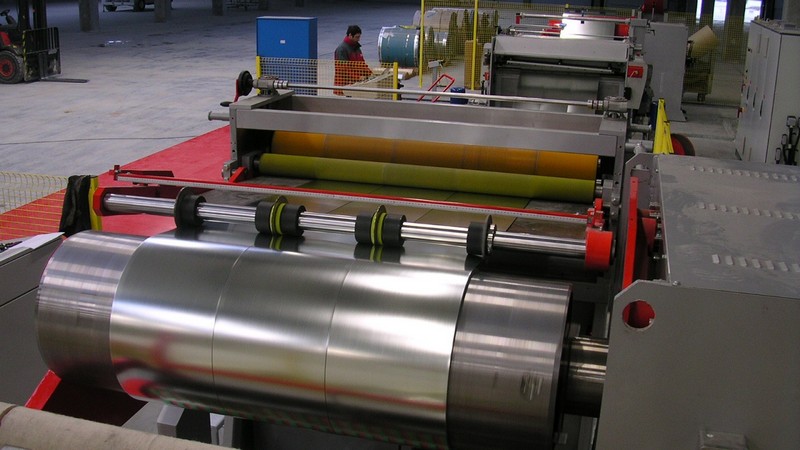

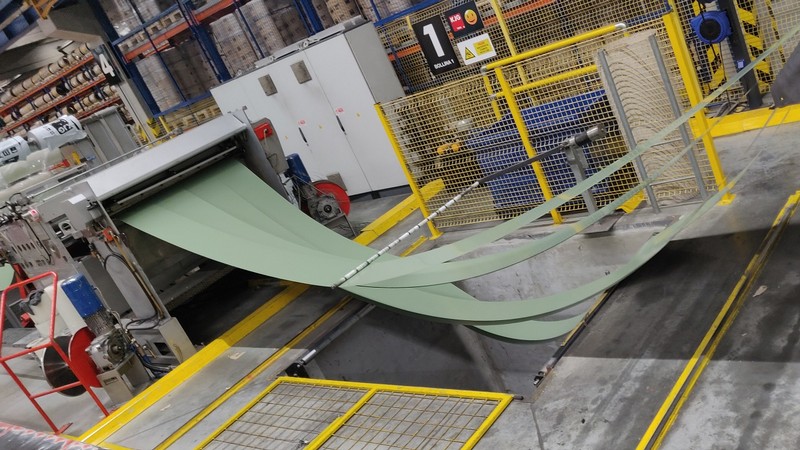

    • Slitting unit with 6 pairs of circular knives + electronic display device

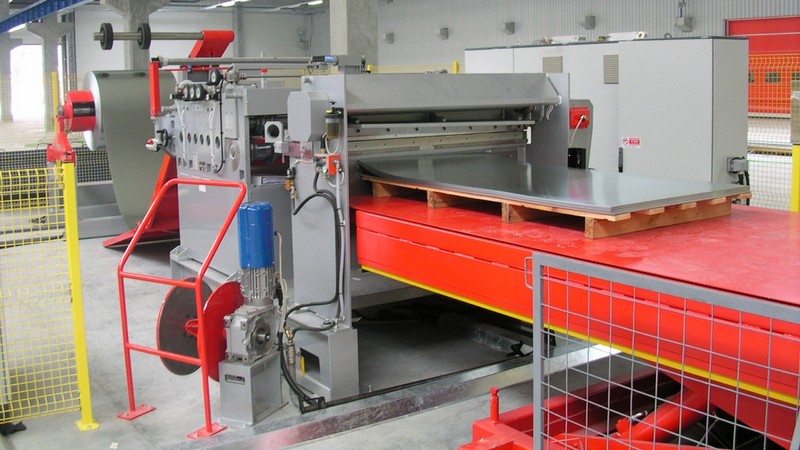

    • Mechanical guillotine shear mm 1550 x 1,5 for cut to length
  • 2 side scrap recoilers

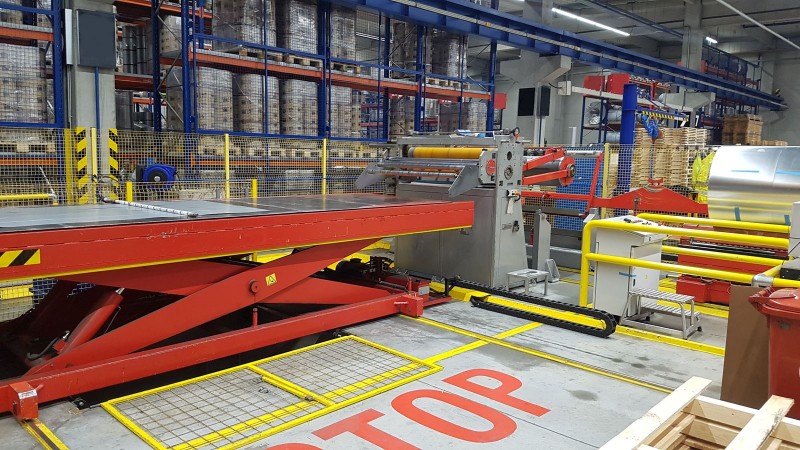

  • 6 meter hydraulic scissor lifting collecting platform with side movement on rails
  • Tension unit with polyurethane rolls with AC motor bracking operation

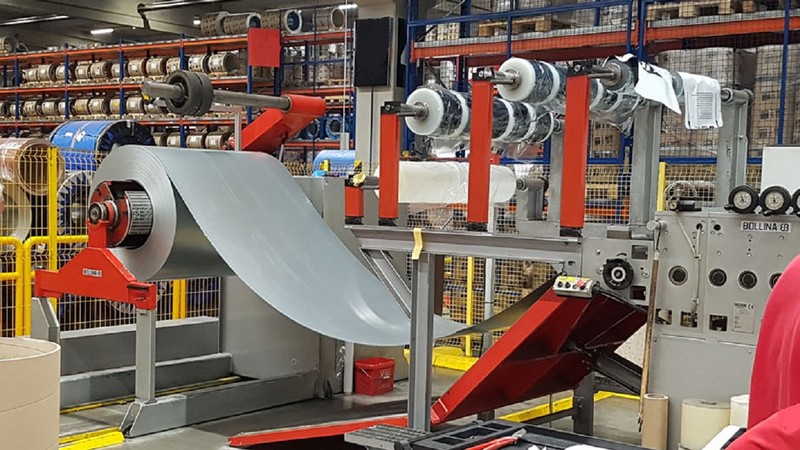

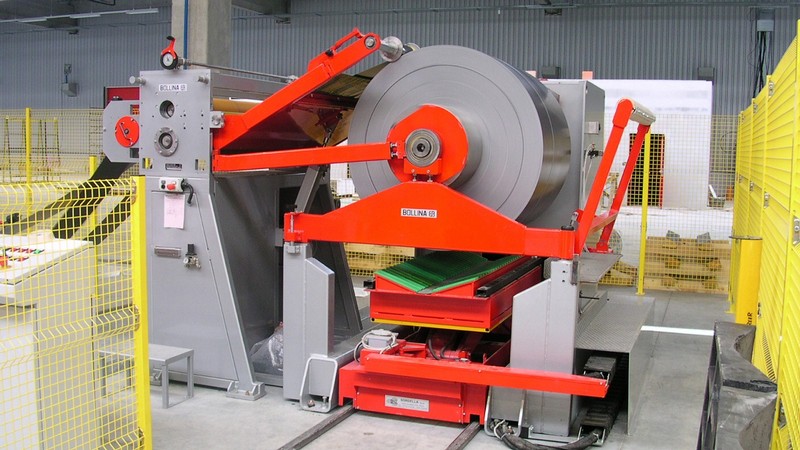

  • Motorized recoiler 10 tons capacity, hydraulic expansion, hydraulic ejector, separating discs
  • Hydraulic coil unloading saddle for recoiler (installation over the floor)
  • Complete pneumatical and hydraulic installation for whole line.

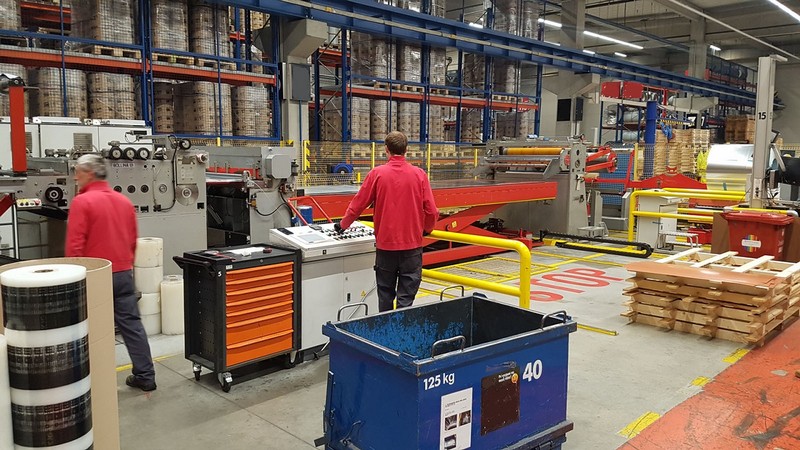

  • Modern electrical / electronic system with Vipa PLC for the complete line.
  • Complete safety system in accordance with EC norms (perimeter fences and photocells).
  • Use and maintenance manuals, diagrams etc. in English language.

Line in very good condition,
still installed and in operation in Slovakia up to Summer 2020, kept in good conditions and performed regular maintenance.
Line will be ready for delivery, after revamping and checks, starting from September / October 2020.
Any requests for customizations will be evaluated in detail.
For information contact our Sales Offices (tel. +39 051 6630804) or send a request to Sale Dept.
